SMA Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.3mm Pin Diameter

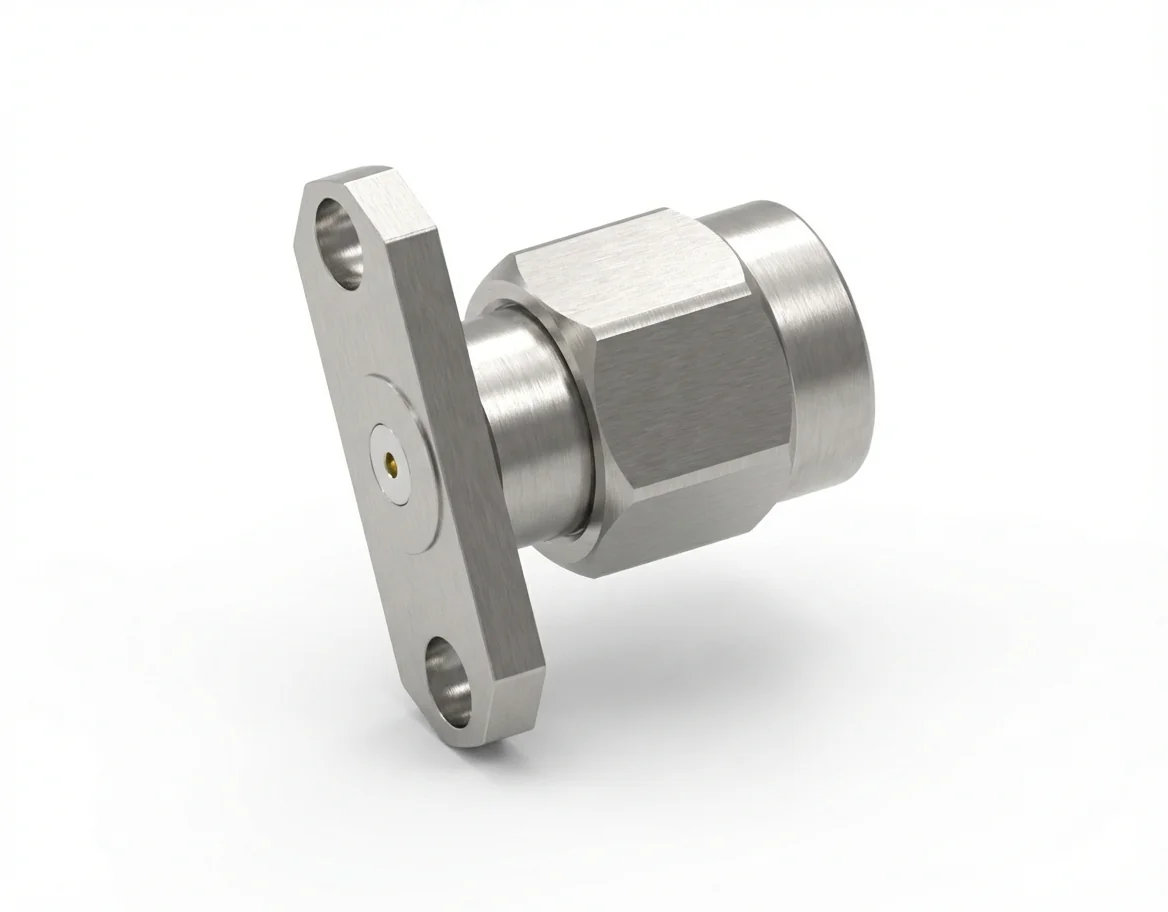

SMA Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-JFD20

The SMA male 2-hole flange mount RF connector with a 0.3 mm pin and 12.22 mm hole spacing provides broadband reliability and mechanical precision for analyzers and test instruments. Its field-replaceable configuration allows quick maintenance and repeated assembly without electrical degradation.

Electrical Properties and Broadband Accuracy

Operating at 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-JFD20 connector ensures low return loss and stable frequency response up to 18 GHz. View additional variants in our SMA connector catalog.

Material and Compliance Standards

Made of passivated stainless steel and fitted with gold-plated beryllium copper contacts, this connector offers both mechanical durability and optimal conductivity. All components are REACH and RoHS compliant. Browse our flange-mount connector lineup for compatible parts.

Mechanical Mounting and Integration

The 2-hole flange mount geometry (12.22 mm spacing) ensures precise alignment and secure mechanical coupling for laboratory RF modules. Discover more models in the RF connector catalog.

Mirror Female Connector

Use alongside the SMA female 2-hole flange mount RF connector – Model SMA-KFD20 to maintain broadband compatibility and consistent impedance balance.
