SMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.46mm Pin Diameter

SMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-KFD22

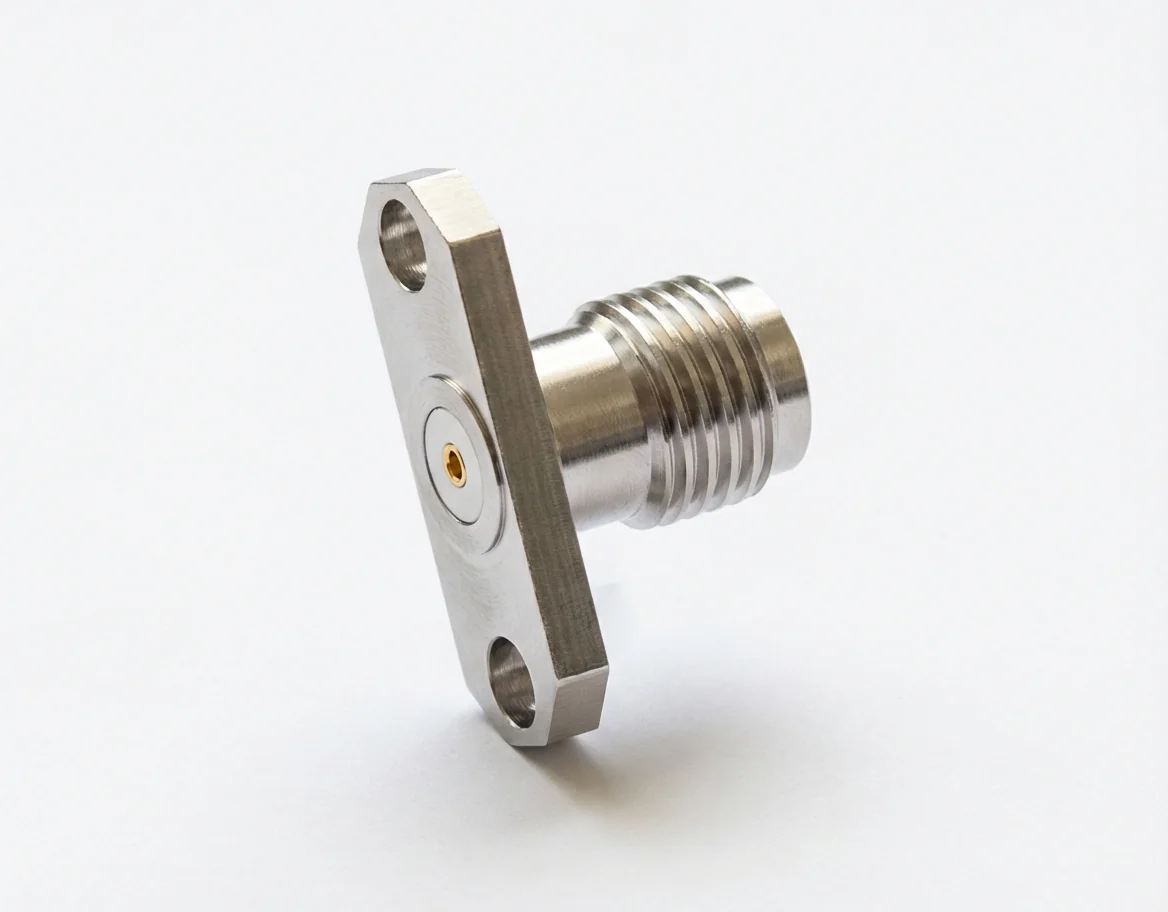

The SMA female 2-hole flange mount RF connector with a 0.46 mm pin and 12.22 mm hole spacing is designed for broadband testing instruments, calibration modules, and high-reliability microwave systems. Its field-replaceable design simplifies assembly and ensures consistent high-frequency performance.

Electrical Properties and Frequency Range

Delivering 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-KFD22 connector guarantees minimal signal loss and reflection up to 18 GHz. Its broadband capability supports stable calibration and precision testing. Browse related designs in the SMA connector range.

Material Composition and Compliance Standards

Manufactured from corrosion-resistant stainless steel with gold-plated beryllium copper contacts, this connector provides strong mechanical endurance and consistent signal conductivity. It meets all REACH and RoHS compliance requirements. See our flange-mount connector section for additional variants.

Mechanical Integration and Mounting Geometry

The 2-hole flange mount configuration (12.22 mm spacing) offers robust mechanical support and easy installation in analyzer modules and compact RF setups. The structure ensures repeatable performance in demanding test applications. Check the RF connector catalog for more options.

Complementary Male Connector

Use with the SMA male 2-hole flange mount RF connector – Model SMA-JFD22 to achieve high repeatability and excellent broadband impedance matching.
