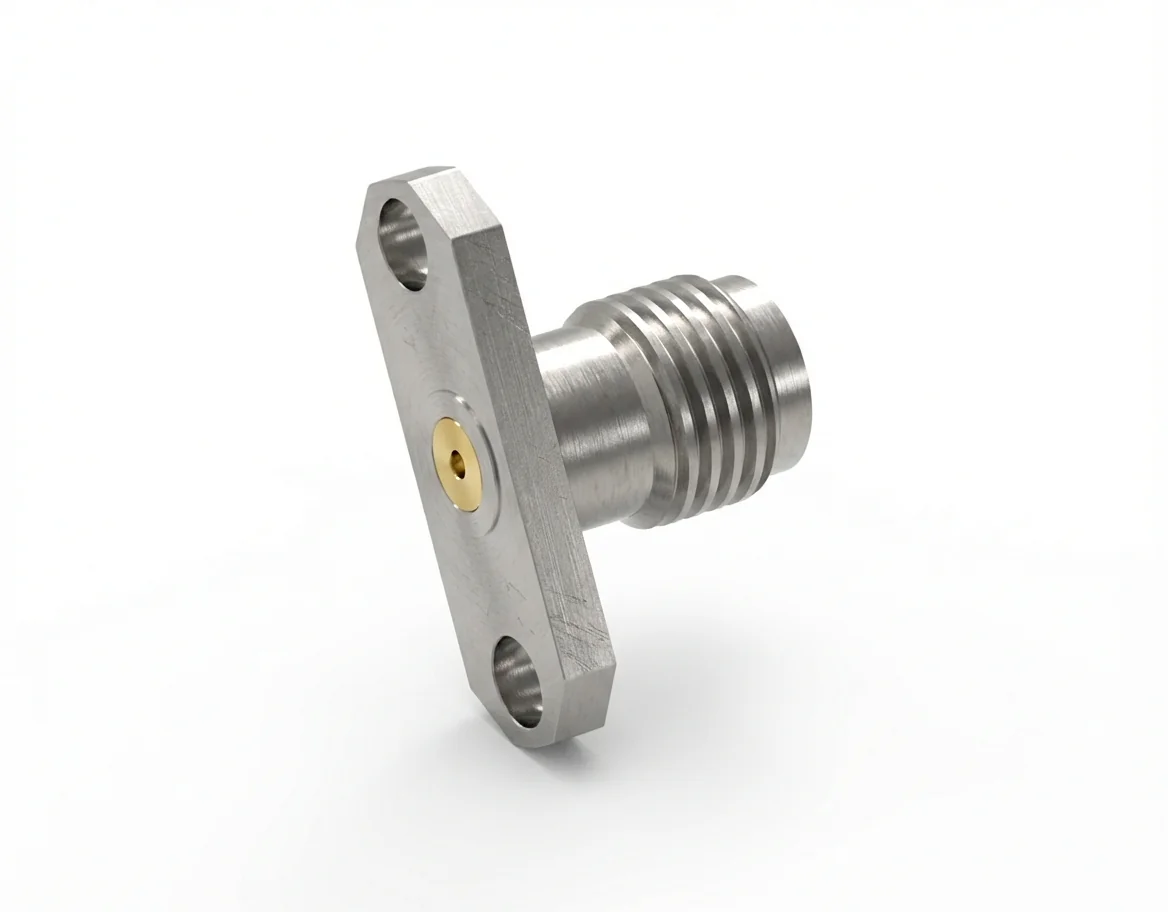

SMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.3mm Pin Diameter

SMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-KFD20

The SMA female 2-hole flange mount RF connector with a 0.3 mm pin and 12.22 mm hole spacing is ideal for compact analyzers, calibration interfaces, and microwave assemblies. The field-replaceable design ensures simplified connector servicing while maintaining precise impedance control.

Electrical Performance and Return Loss

Offering 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-KFD20 connector ensures stable broadband transmission from DC to 18 GHz. It supports low reflection and high repeatability in calibration systems. Explore the SMA connector series for similar designs.

Material Integrity and Global Compliance

Manufactured from passivated stainless steel and gold-plated beryllium copper contacts, this connector guarantees long service life and consistent signal quality. It is fully REACH and RoHS compliant, ensuring safe use across international markets. Browse related flange-mount connectors for more options.

Mechanical Integration and Mount Geometry

The 2-hole flange mount design (12.22 mm spacing) provides robust fastening and precision alignment for compact, high-frequency modules. Its durable construction supports multiple re-mating operations. Review the RF connector catalog for additional SMA connector configurations.

Matching Male Version

Pair with the SMA male 2-hole flange mount RF connector – Model SMA-JFD20 for stable broadband coupling and low-loss performance in precision measurement setups.
