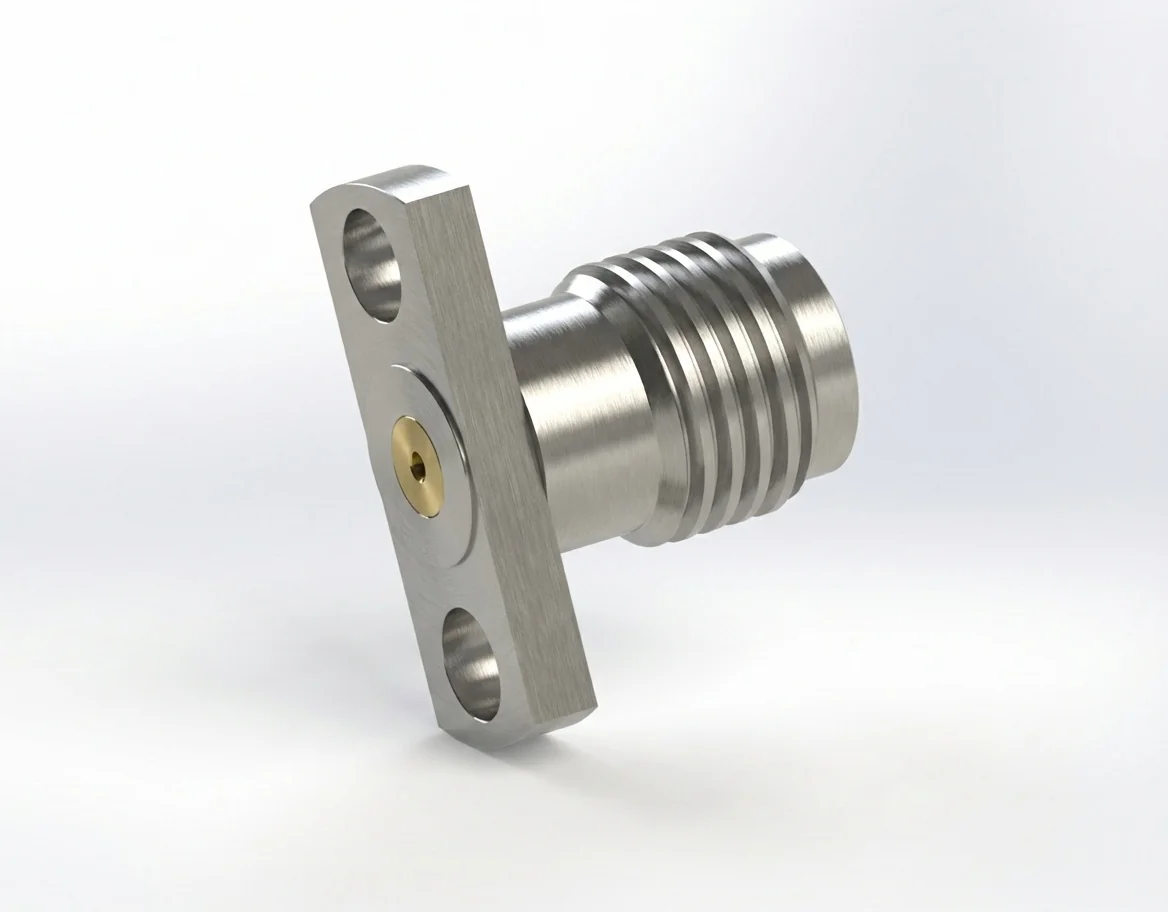

SMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.23mm Pin Diameter

SMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-KFD31

The SMA female 2-hole flange mount RF connector with a 0.23 mm pin and 12.7 mm hole spacing is built for broadband precision systems requiring dependable, repeatable connections. Its field-replaceable configuration ensures serviceability and phase stability in high-performance testing environments.

Electrical Consistency and Broadband Stability

Engineered for 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-KFD31 connector delivers low-loss signal transmission up to 18 GHz. Its superior return-loss performance makes it ideal for calibration and measurement setups. Explore similar solutions in our SMA connector range.

Material Design and Compliance Assurance

Fabricated from passivated stainless steel with gold-plated beryllium copper contacts, this connector ensures exceptional conductivity, corrosion resistance, and durability. Fully REACH and RoHS compliant, it meets international environmental standards. View related products in the flange-mount connector collection.

Mechanical Precision and Mounting Interface

The 2-hole flange mount layout (12.7 mm spacing) guarantees solid attachment and precise alignment for compact analyzer housings and modular calibration instruments. Visit our RF connector catalog to discover more compatible field-replaceable SMA connectors.

Matching Male Connector

Pair with the SMA male 2-hole flange mount RF connector – Model SMA-JFD31 for perfectly matched broadband performance and long-term test reliability.
