SMA Female 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.23mm Pin Diameter

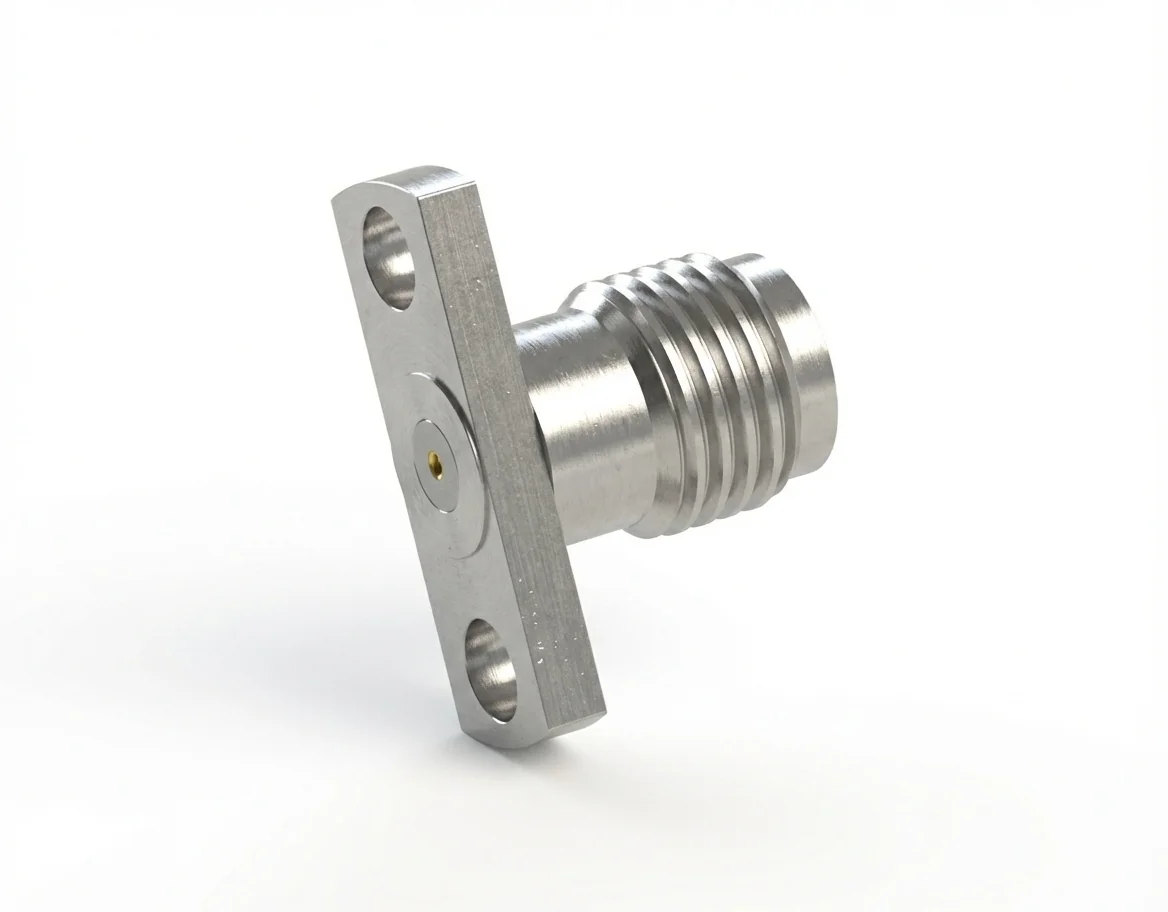

SMA Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model SMA-KFD25

The SMA female 2-hole flange mount RF connector with a 0.23 mm pin and 10.2 mm hole spacing provides precise electrical performance for miniaturized calibration systems, broadband analyzers, and RF measurement equipment. Its field-replaceable construction ensures efficient maintenance and reliable high-frequency stability.

Electrical Behavior and Signal Integrity

With 50 Ω impedance, VSWR < 1.08, and insertion loss < 0.06√F(GHz) dB, the SMA-KFD25 connector provides stable broadband operation from DC to 18 GHz. It delivers superior impedance control and consistent return loss. Check out our SMA connector catalog for related interfaces.

Material Properties and Compliance

Crafted from stainless steel and gold-plated beryllium copper, this connector ensures mechanical longevity, corrosion resistance, and excellent electrical contact. Fully REACH and RoHS compliant, it supports global production and export standards. Browse additional options in the flange-mount connector range.

Mechanical Layout and Mounting Interface

The 2-hole flange mount pattern (10.2 mm spacing) enables compact installation and stable fixation in small RF modules or calibration boards. It ensures precise alignment and minimal signal variation. Explore the RF connector catalog for compatible SMA assemblies.

Matching Male Connector

Use with the SMA male 2-hole flange mount RF connector – Model SMA-JFD25 to achieve reliable broadband connectivity and repeatable measurement performance.
