3.5mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.51mm Pin Diameter

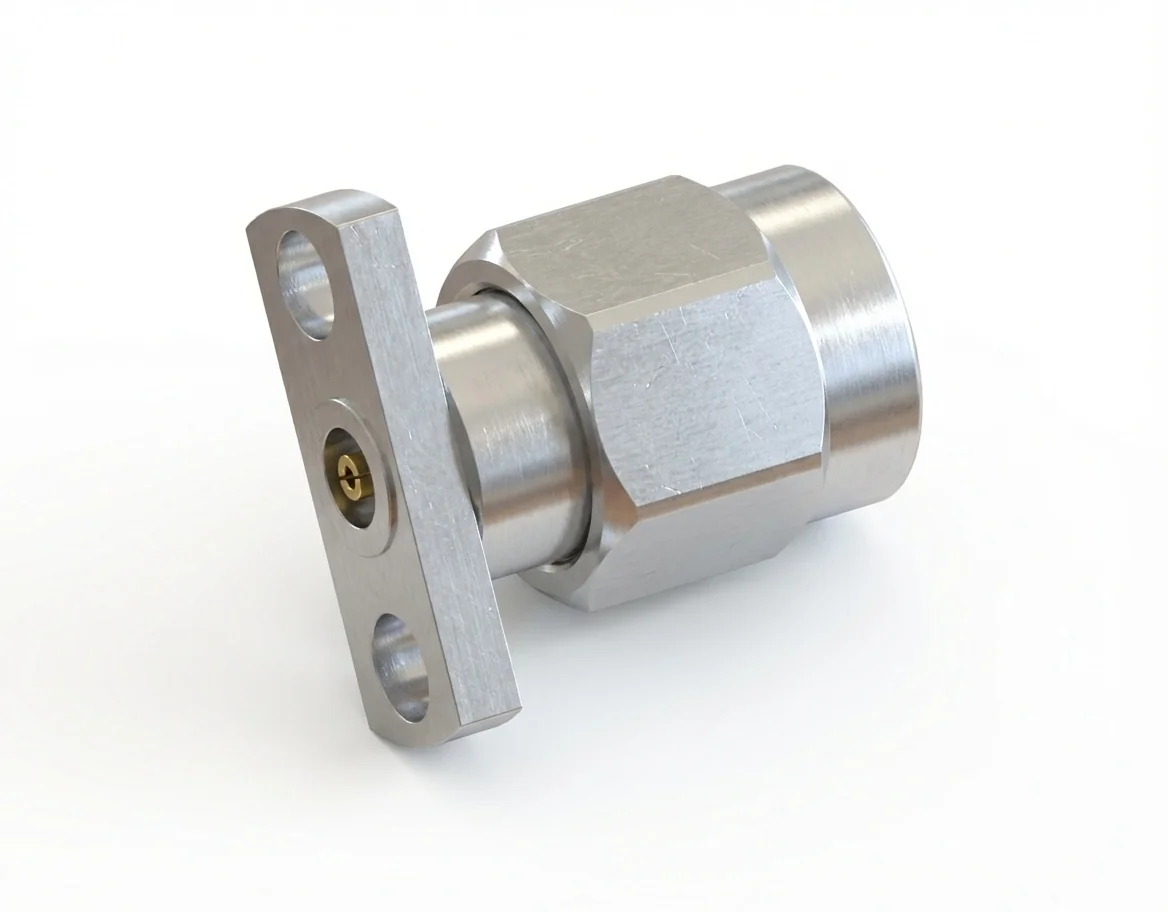

3.5mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD35

The 3.5 mm male 2-hole flange mount RF connector with a 0.51 mm pin and 12.7 mm hole spacing offers precision and reliability for RF calibration kits, analyzers, and modular testing systems. Its field-replaceable interface simplifies servicing and maintains phase repeatability across numerous connection cycles.

Electrical Consistency and Broadband Matching

Operating at 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5-JFD35 connector provides low-reflection performance up to 26.5 GHz. Its design ensures stable results across multiple calibration setups. Find related precision products in our 3.5 mm connector series.

Manufacturing Precision and Standards Compliance

Crafted from passivated stainless steel with gold-plated beryllium copper contacts, the connector achieves optimal conductivity and resistance to wear. Fully REACH and RoHS compliant, it meets international performance standards. Additional models are available under flange-mount connectors.

Mechanical Design and Panel Compatibility

The 2-hole flange mount spacing of 12.7 mm offers excellent rigidity and easy installation within modular housings and RF analyzers. The connector’s geometry supports repeatable, stable alignment. Explore our RF connector catalog for more high-precision field-replaceable solutions.

Mirror Female Connector

Pair with the 3.5 mm female 2-hole flange mount RF connector – Model 3.5-KFD35 to form a gender-matched, low-loss interface for broadband measurement systems.
