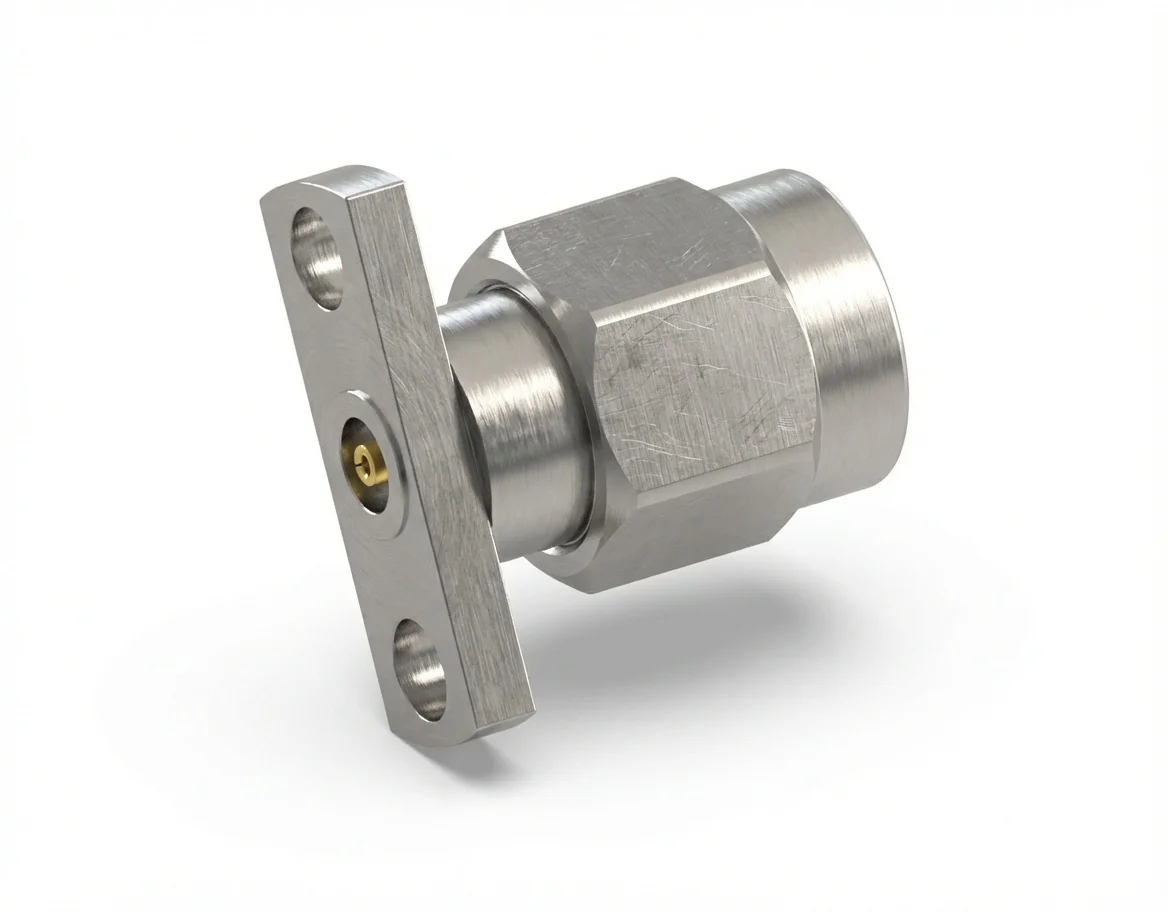

3.5mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 10.2mm Hole Spacing, 0.46mm Pin Diameter

3.5mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD28

The 3.5 mm male 2-hole flange mount RF connector with a 0.46 mm pin and 10.2 mm hole spacing is a high-precision interface for broadband analyzers, calibration kits, and metrology equipment. Its field-replaceable configuration provides consistent impedance performance across multiple replacements.

Signal Stability and Broadband Operation

Offering 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5-JFD28 connector ensures phase-stable and low-loss transmission up to 26.5 GHz. Its precision alignment minimizes intermodulation effects. Learn more about this interface in our 3.5 mm connector lineup.

Engineering Materials and Certification

Manufactured from stainless steel and equipped with gold-plated beryllium copper contacts, the connector provides mechanical robustness and consistent signal integrity. It is REACH and RoHS compliant, aligning with global standards. See additional configurations under flange-mount connectors.

Mechanical Layout and Application Flexibility

The 2-hole flange mount pattern with 10.2 mm spacing offers stable alignment and efficient use of space for precision modules and analyzers. The compact geometry enhances system density while maintaining durability. Visit our RF connector catalog for more modular designs.

Complementary Female Version

Pair the 3.5-JFD28 with the 3.5 mm female 2-hole flange mount RF connector –
