| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

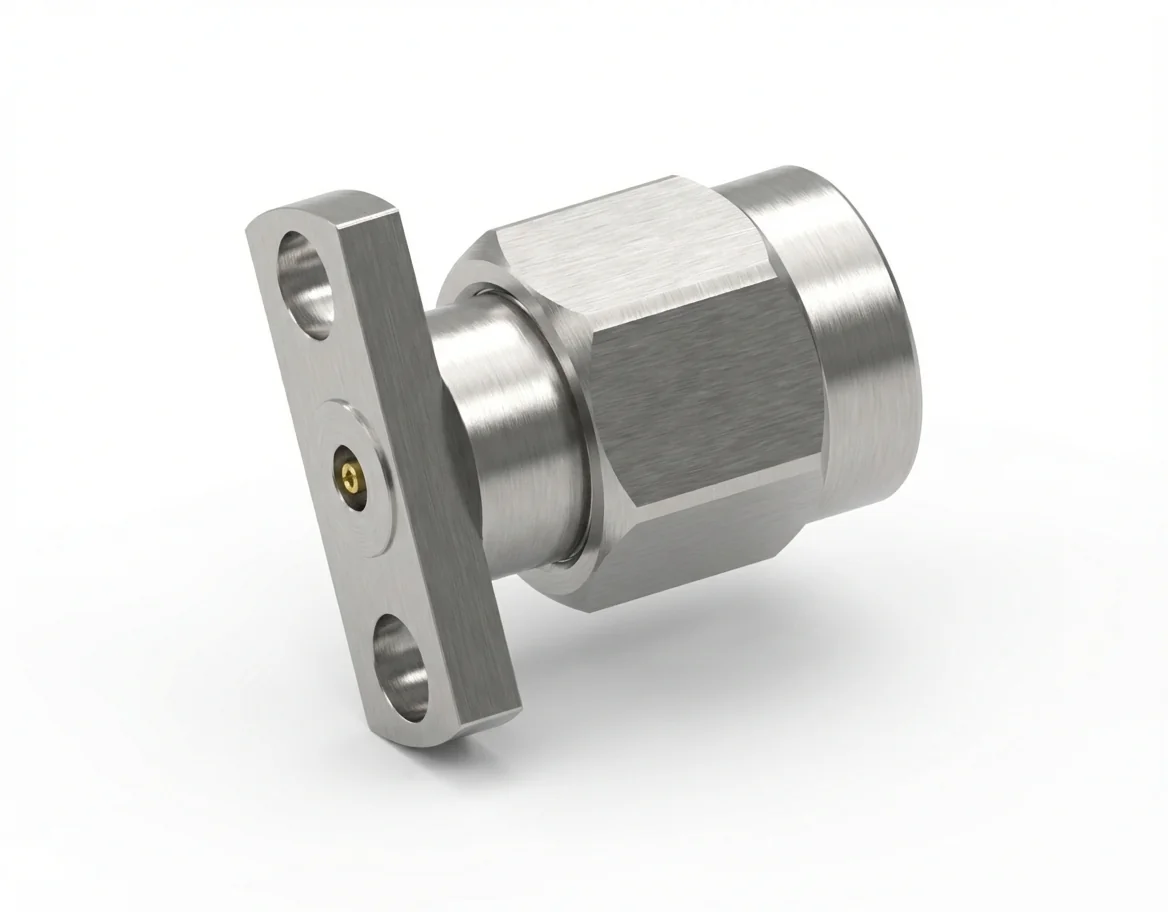

The 3.5 mm male 2-hole flange mount RF connector with a 0.3 mm pin and 12.7 mm hole spacing delivers precise electrical and mechanical performance for RF analyzers and measurement equipment. Its field-replaceable assembly offers reliable maintenance and alignment during repeated calibration operations.
Featuring 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5-JFD32 connector ensures consistent signal integrity and low reflection up to 26.5 GHz. Its precision interface supports broadband test instrumentation. Browse similar products in our 3.5 mm connector series.
Built from passivated stainless steel with gold-plated beryllium copper contacts, the connector guarantees corrosion resistance and long-term conductivity. Each model is REACH and RoHS compliant, meeting international manufacturing standards. Check our flange-mount connector catalog for related assemblies.
The 2-hole flange mount layout with 12.7 mm spacing ensures robust installation and secure mechanical stability on RF panels and precision enclosures. This design supports repeated re-mating in demanding environments. Explore the RF connector catalog for more compatible components.
Combine with the 3.5 mm female 2-hole flange mount RF connector – Model 3.5-KFD32 to ensure phase-matched connections and reliable broadband measurement consistency.
