3.5mm Male 2-Hole Flange Mount RF Connector – Field Replaceable, 12.7mm Hole Spacing, 0.38mm Pin Diameter

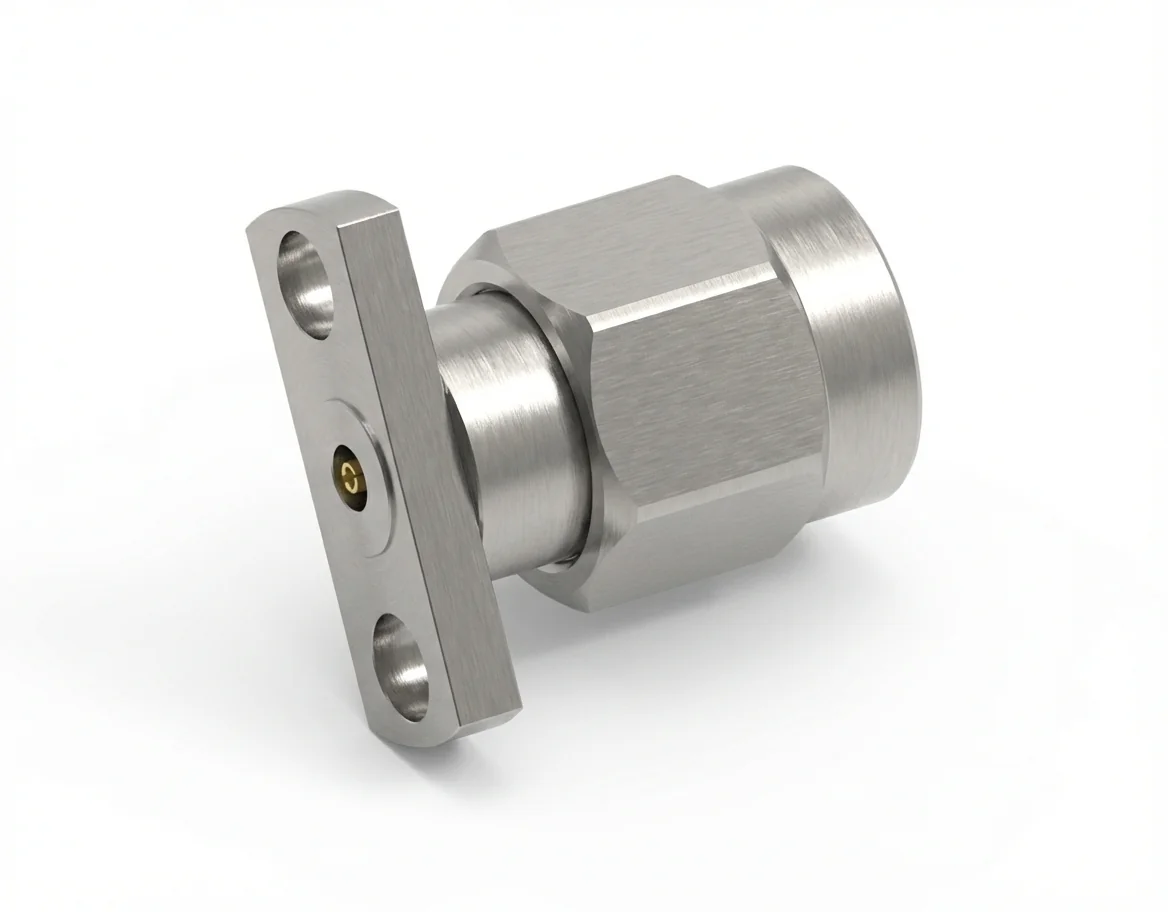

3.5mm Male 2-Hole Flange Mount Field-Replaceable RF Connector – Model 3.5-JFD33

The 3.5 mm male 2-hole flange mount RF connector with a 0.38 mm pin and 12.7 mm hole spacing is designed for RF test assemblies and modular calibration ports requiring compact size and repeatable performance. Its field-replaceable configuration provides ease of maintenance while preserving electrical consistency.

Electrical Characteristics and Broadband Stability

Delivering 50 Ω impedance, VSWR ≤ 1.1, and insertion loss ≤ 0.06 √F(GHz) dB, the 3.5-JFD33 connector ensures smooth broadband operation through DC–26.5 GHz. Its precision geometry minimizes reflection and enhances return loss. Explore similar models within our 3.5 mm connector category.

Mechanical Durability and Certification

Constructed from passivated stainless steel and equipped with gold-plated beryllium copper contacts, this connector delivers outstanding strength, wear resistance, and conductivity. Fully REACH and RoHS compliant, it aligns with global quality requirements. See our flange-mount connector range for comparable interfaces.

Installation Dimensions and Design Fit

The 2-hole flange mount footprint with 12.7 mm spacing ensures easy alignment and secure attachment for analyzer housings, RF panels, and test enclosures. The design enhances mechanical precision for field assembly. Review our RF connector catalog for additional field-replaceable solutions.

Complementary Female Connector

Pair with the <a href="/rf-connectors/3-5mm-female-2-hole-flange-rf-connector-0-38mm-pin-diameter-3-
