2.92mm Female Straight RF Connector – Fits CFT360 Coaxial Cable

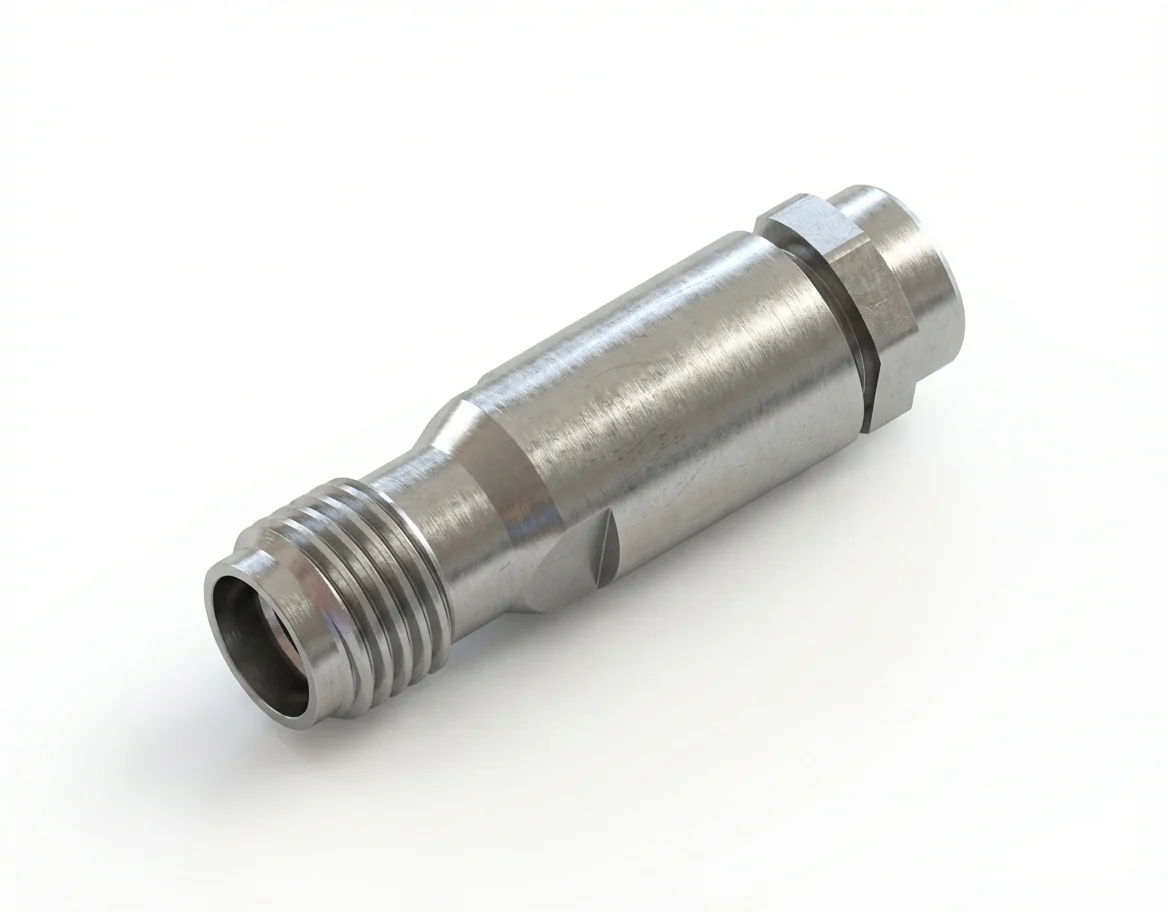

2.92mm Female Straight RF Connector – Cable Mount, Model 2.92-KCFT360-1

The 2.92 mm female straight cable-mount RF connector, model 2.92-KCFT360-1, is engineered for low-loss, phase-stable assemblies using the CFT360 low-loss coaxial cable. With a 50 Ω impedance, DC–40 GHz frequency range, VSWR ≤ 1.17, and insertion loss ≤ 0.06 √f dB, it ensures stable broadband transmission and precise phase integrity for vector-network-analysis and calibration systems. Explore the 2.92 mm connector family for related interfaces.

Broadband Electrical Stability and Precision

The 2.92-KCFT360-1 connector provides accurate impedance transition and low reflection across the DC–40 GHz bandwidth. Its superior return-loss control supports metrology-grade systems and high-frequency calibration where consistent electrical performance is critical.

Material Quality and Contact Durability

Featuring a passivated stainless-steel shell and gold-plated beryllium-copper center contact, the 2.92-KCFT360-1 ensures corrosion resistance, mechanical durability, and low contact resistance through repeated mating cycles. Its precision machining guarantees stable phase response and low return loss under thermal variation. See additional precision connector designs within RF connectors.

Termination Design and Mechanical Integrity

The solder-type termination enables accurate dielectric alignment and secure strain relief, minimizing insertion-loss variation and ensuring long-term performance stability in production test environments. Explore more termination options under cable-mount connectors.

Integration and Application Performance

When paired with the CFT360 low-loss, phase-stable coaxial cable, the 2.92-KCFT360-1 connector delivers repeatable microwave accuracy, low attenuation, and stable impedance across broadband measurement, testing, and calibration systems.

For the corresponding male version, see the mirror part:

2.92mm Male Straight RF Connector – Fits CFT360 Coaxial Cable, Model 2.92-JCFT360-1
.
