2.92mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 5.64mm Hole Spacing, 0.46mm Pin Diameter

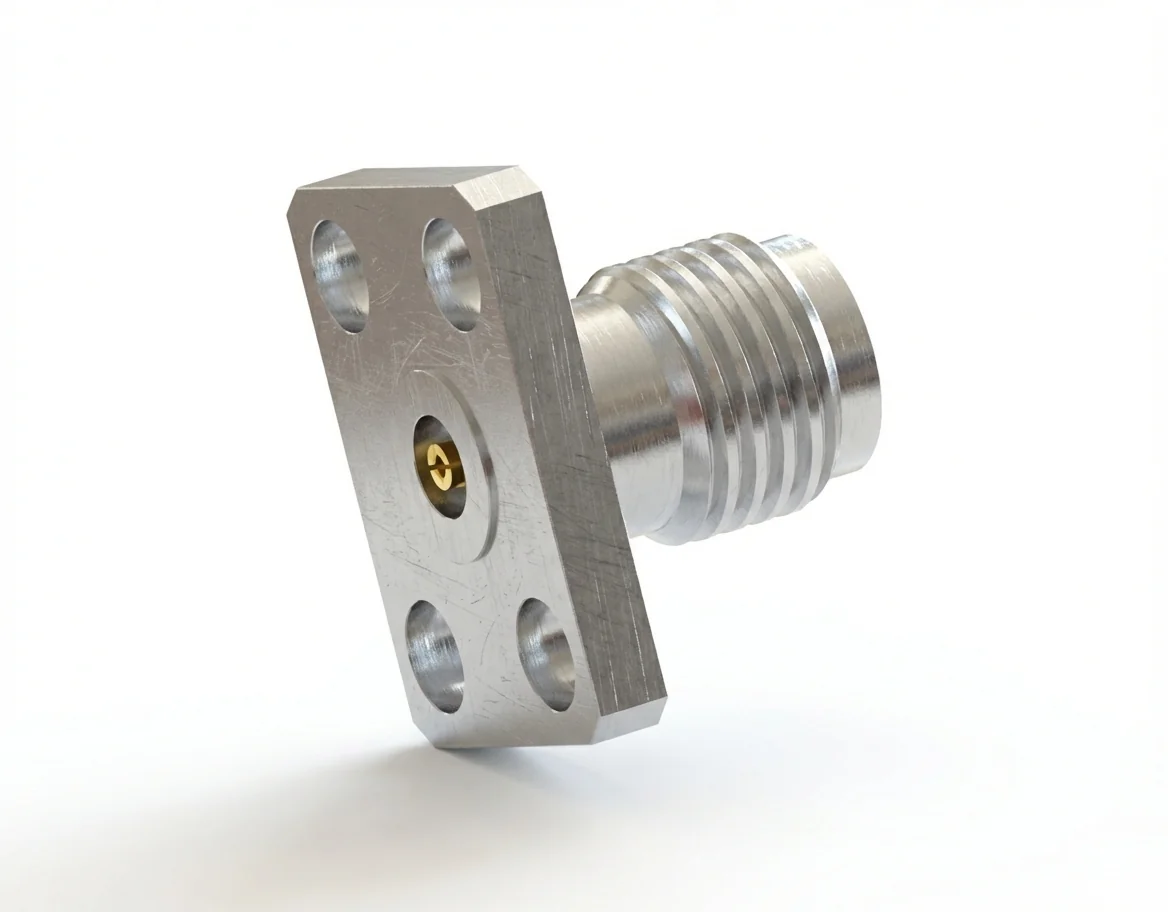

2.92mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.92-KFD14

The 2.92 mm female 4-hole flange mount RF connector with a 0.46 mm pin and 5.64 mm hole spacing is optimized for high-frequency power applications where stability and mechanical strength are essential. With 50 Ω impedance and operation to 40 GHz, this field-replaceable connector delivers repeatable low-loss performance.

Electrical Consistency and Power Handling

Offering VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 4-hole flange mount RF connector provides stable signal transfer even under mechanical stress. The 0.46 mm pin enhances contact pressure and durability.

Material Reliability and Compliance

The 2.92 mm female flange connector is fabricated from stainless steel with gold-plated beryllium copper contacts for maximum conductivity and resistance to wear. Fully REACH and RoHS compliant.

Applications

Used in broadband measurement systems, radar modules, and 4-hole flange mount RF assemblies where precision and mechanical endurance are critical.

Male Equivalent

Pair with the 2.92 mm male 4-hole flange mount RF connector – Model 2.92-JFD14. Discover the complete 2.92 mm RF connector range in the RF Connector Catalog.
