| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

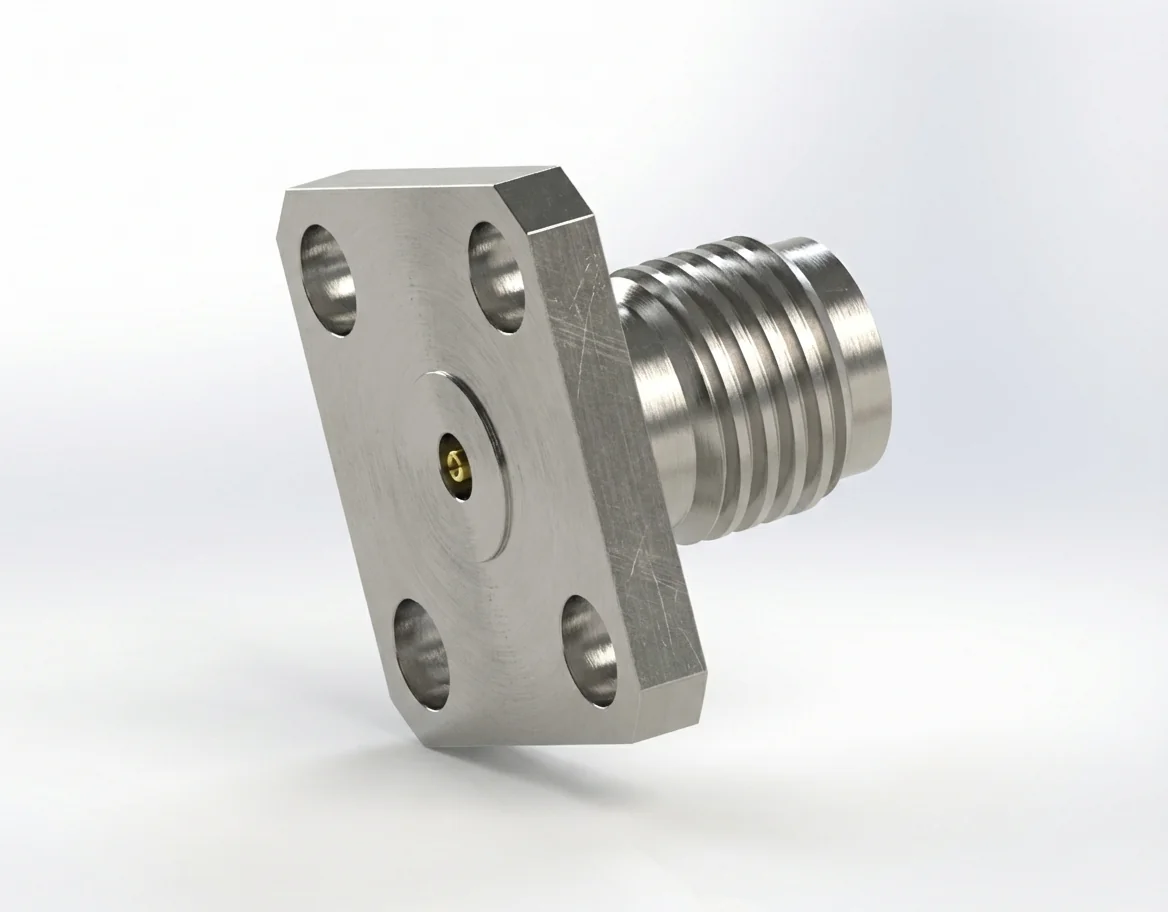

The 2.92 mm female 4-hole flange mount RF connector with a 0.23 mm pin and 8.64 mm hole spacing ensures outstanding repeatability and precision for calibration-grade measurement systems. Designed for 50 Ω operation up to 40 GHz, this field-replaceable RF connector delivers low reflection and stable electrical characteristics in high-frequency instrumentation.
Featuring VSWR ≤ 1.15 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.92 mm female 4-hole flange mount RF connector guarantees reliable impedance matching and minimal loss across broadband frequencies. The 0.23 mm pin provides optimal contact alignment for precise RF coupling.
Manufactured from stainless steel and gold-plated beryllium copper, the 2.92 mm female flange connector combines corrosion resistance with mechanical longevity. It operates between −55 °C and +165 °C and is fully REACH and RoHS compliant.
Ideal for use in 4-hole flange mount RF assemblies, calibration modules, and high-precision network analyzers requiring consistent performance under frequent connections.
For complementary integration, pair the 2.92-KFD1 with the 2.92 mm male 4-hole flange mount RF connector – Model 2.92-JFD1. Explore the full 2.92 mm RF connector series in the RF Connector Catalog.
