2.4mm Female 4-Hole Flange Mount RF Connector – Field Replaceable, 6.35mm Hole Spacing, 0.51mm Pin Diameter

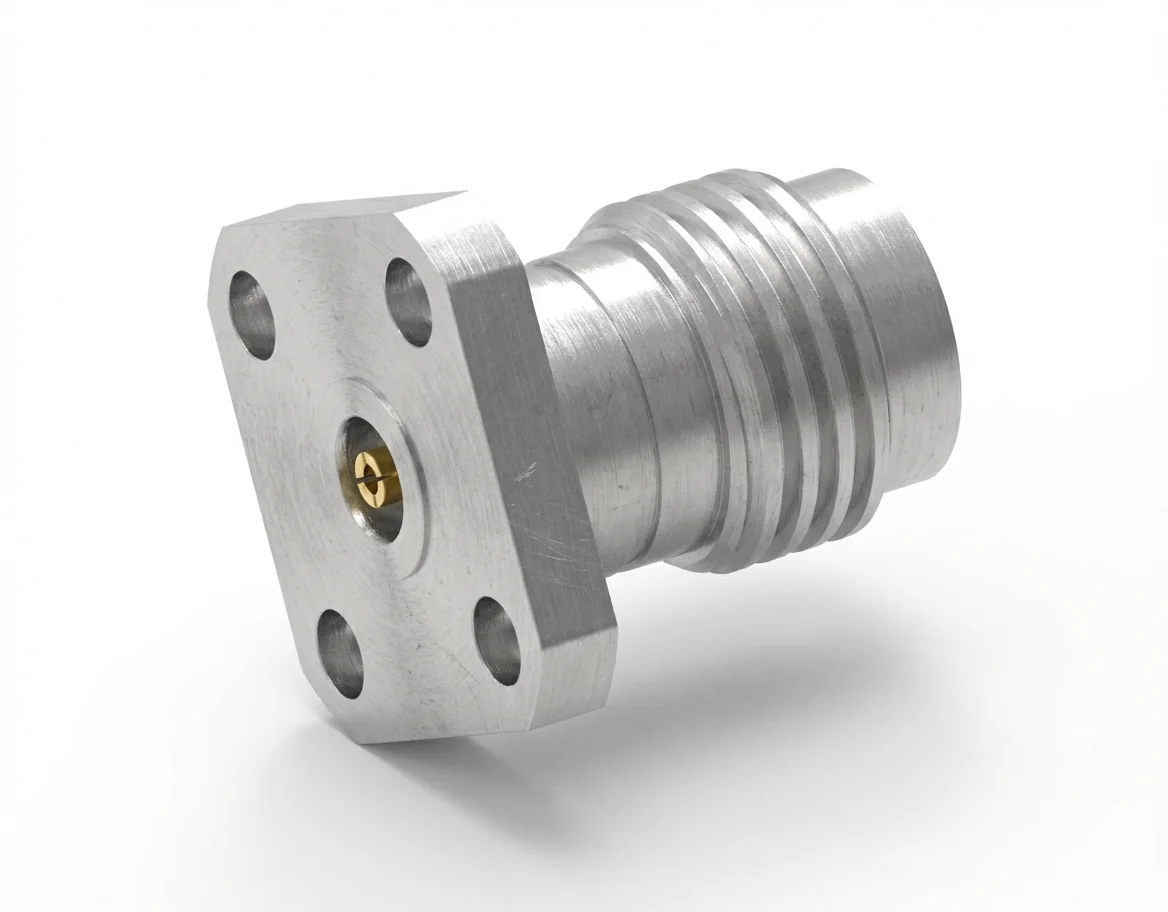

2.4mm Female 4-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-KFD10

The 2.4mm female 4-hole flange mount RF connector with a 0.51 mm pin and 6.35 mm hole spacing is designed for heavy-duty measurement systems that demand superior contact stability and structural integrity. Operating at 50 Ω from DC to 50 GHz, this field-replaceable RF connector supports repeatable, low-loss performance in demanding test setups.

Reliable Electrical Consistency

Delivering a VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, the 2.4mm female 4-hole flange mount RF connector ensures accurate impedance matching even under mechanical stress. The thicker 0.51 mm pin enhances contact longevity and resists deformation during frequent mating cycles.

Material Durability, Compliance, and Longevity

Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.4mm female flange connector provides excellent corrosion resistance, mechanical strength, and stable conductivity across temperature extremes. Fully REACH and RoHS compliant, it meets global environmental and safety standards, maintaining consistent performance from −55 °C to +165 °C in intensive test environments.

Applications in Rigid Laboratory Systems

The 6.35 mm flange spacing offers mechanical balance ideal for durable 4-hole flange mount connector assemblies used in signal distribution frames, calibration systems, and defense-grade analyzers.

Customization and Integration Support

Mechanc’s 2.4 mm RF connector line supports flexible customization, from pin geometries to flange thickness options. Explore our RF Connector Catalog for additional models and precision RF interconnect solutions. Pair with the 2.4mm male 4-hole flange mount RF connector – Model 2.4-JFD10 for consistent broadband response and enhanced mechanical durability.
