2.4mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 9mm Hole Spacing, 0.51mm Pin Diameter

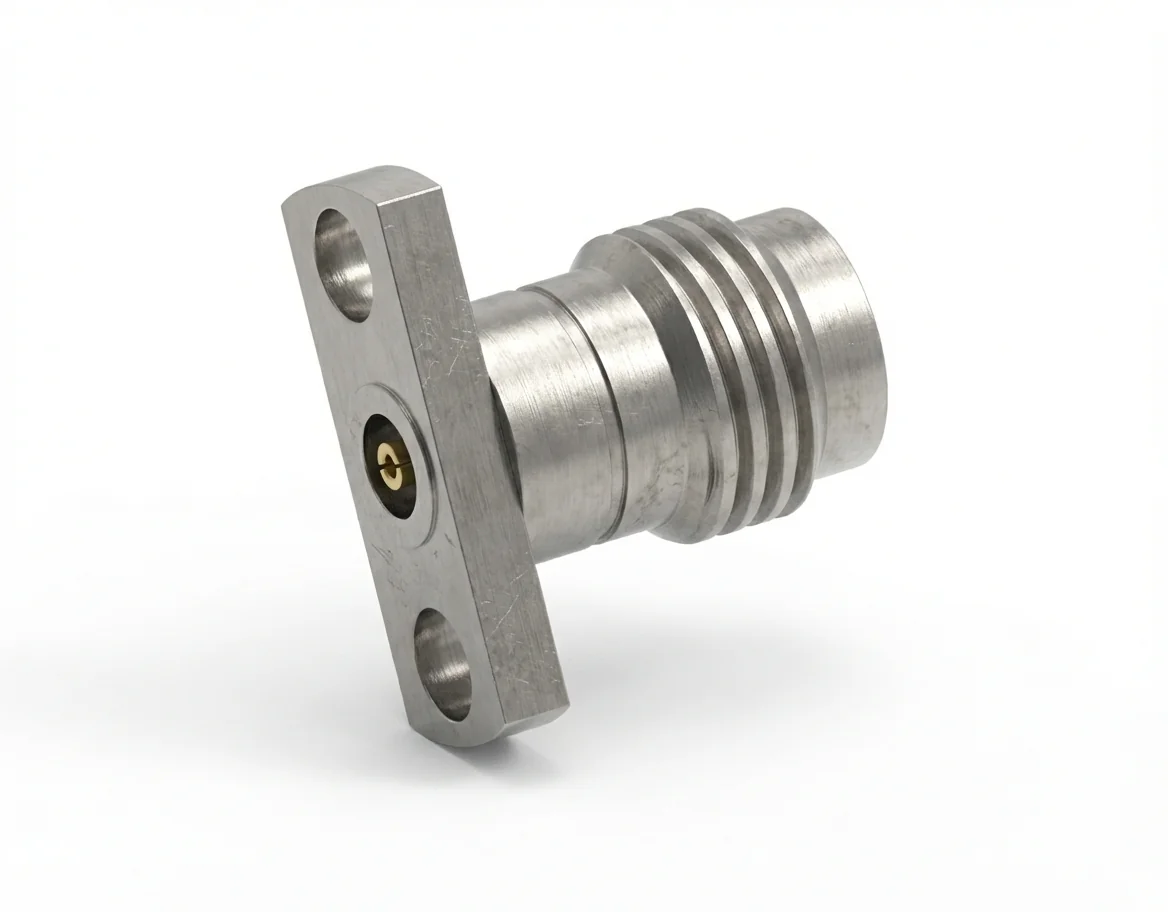

2.4mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-KFD30

The 2.4mm female 2-hole flange mount RF connector with a 0.51 mm pin and 9.0 mm hole spacing is designed for high-load, compact test environments requiring maximum durability. Supporting 50 Ω impedance and DC–50 GHz operation, this field-replaceable connector provides consistent performance in laboratory and production testing setups.

Optimized for Power and Stability

The 2.4mm female 2-hole flange mount RF connector achieves VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, offering superior return-loss control and minimal signal degradation. The 0.51 mm pin diameter provides extended contact longevity and stable electrical transmission under load.

Material Strength and Environmental Compliance

Constructed from stainless steel with gold-plated beryllium copper contacts, the 2.4mm female flange connector ensures robust electrical performance and corrosion resistance. Fully REACH and RoHS compliant, it upholds international standards for safety and sustainability.

Applications in High-Frequency Test Equipment

The 9.0 mm 2-hole flange design allows simple integration with 2-hole flange mount RF assemblies used in aerospace measurement systems, network analyzers, and amplifier verification setups.

Precision Engineering Support

Mechanc’s range of 2.4 mm RF connectors can be customized for any test configuration or mechanical layout. Explore our RF Connector Catalog for compatible high-frequency solutions. Pair with the 2.4mm male 2-hole flange mount RF connector – Model 2.4-JFD30 for precision-matched assemblies in compact high-frequency systems.
