2.4mm Female 2-Hole Flange Mount RF Connector – Field Replaceable, 12.22mm Hole Spacing, 0.46mm Pin Diameter

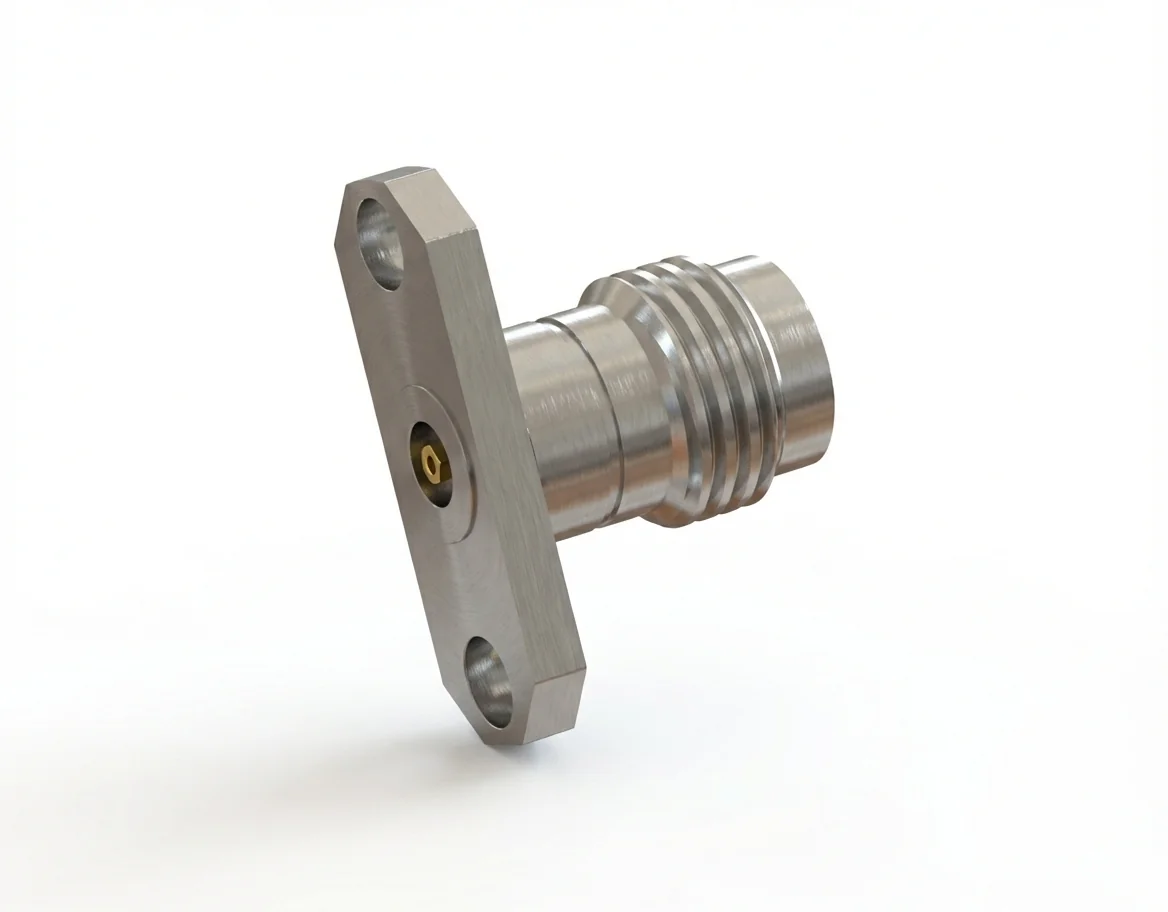

2.4mm Female 2-Hole Flange Mount Field-Replaceable RF Connector – Model 2.4-KFD19

The 2.4mm female 2-hole flange mount RF connector with a 0.46 mm pin and 12.22 mm hole spacing is engineered for high-power precision measurement applications. Supporting 50 Ω impedance and frequencies up to 50 GHz, this field-replaceable connector ensures stable electrical performance in rugged laboratory environments.

High-Power Electrical Integrity

The 2.4mm female 2-hole flange mount RF connector delivers VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, guaranteeing minimal return loss and consistent impedance control. The 0.46 mm pin enhances current-handling capacity, ensuring repeatable results under mechanical stress.

Durability, Reliability, and Compliance

Constructed from stainless steel and gold-plated beryllium-copper contacts, the 2.4mm female flange connector provides high conductivity, corrosion resistance, and mechanical strength. Fully REACH and RoHS compliant, it meets global environmental and material safety standards while operating reliably between −55 °C and +165 °C.

Applications in Precision RF Systems

The 12.22 mm two-hole flange pattern is ideal for 2-hole flange mount RF connectors integrated into microwave analyzers, RF switching modules, and amplifier test platforms.

Custom RF Integration

Mechanc manufactures configurable 2.4 mm RF connectors to match various pin diameters, flange designs, and materials. Explore our RF Connector Catalog for more high-frequency solutions. Pair with the 2.4mm male 2-hole flange mount RF connector – Model 2.4-JFD19 for precise impedance matching and enhanced power performance in modular RF setups.
