| Quantity | Price |
| 1 - 99 | 22,00 $ |
| 100 - 199 | 21,56 $ |
| 200 - 499 | 21,34 $ |
* All Prices are in US Dollars and do not include duties
Key Specifications
Frequency Max
Connector Series
Connector Gender
Body Style
VSWR Max
Termination Type
Interface Type
Attachment Method
Mount Method
Description

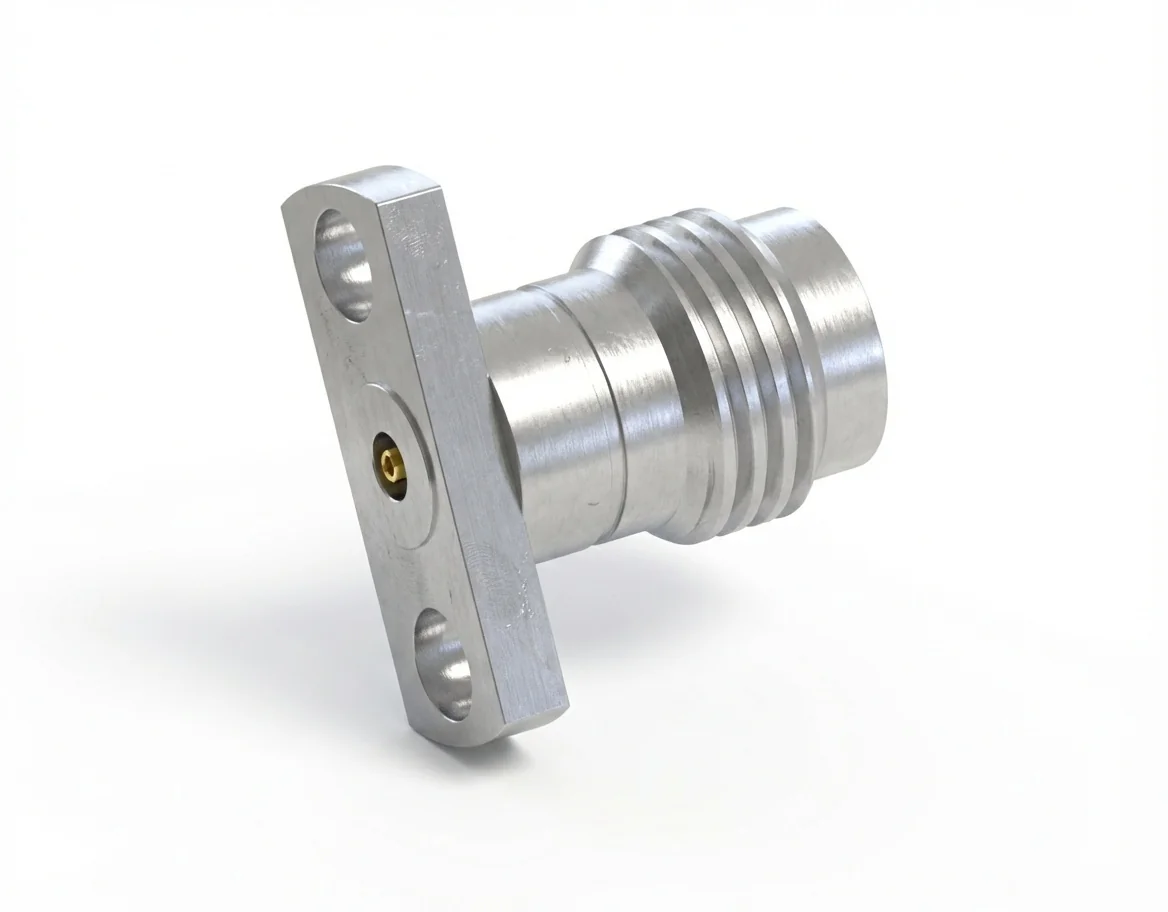

The 2.4mm female 2-hole flange mount RF connector with a 0.30 mm pin and 9.0 mm hole spacing delivers the perfect combination of electrical precision and mechanical stability. With 50 Ω impedance and performance up to 50 GHz, this field-replaceable connector ensures reliable signal transfer in high-frequency test systems.
The 2.4mm female 2-hole flange mount RF connector achieves VSWR ≤ 1.2 and insertion loss ≤ 0.06 √F(GHz) dB, providing low-loss and repeatable connectivity. The 0.30 mm pin ensures optimal balance between contact durability and precise electrical performance.
Engineered from stainless steel with gold-plated beryllium copper contacts, the 2.4mm female flange connector resists corrosion and maintains signal integrity under repeated use. It is fully REACH and RoHS compliant, meeting international standards for sustainability and safety.
The 9.0 mm two-hole flange configuration fits compact 2-hole flange mount RF modules commonly used in metrology tools, portable analyzers, and precision microwave networks.
Mechanc offers tailored 2.4 mm RF connectors adapted to micro-scale configurations. Browse our RF Connector Catalog to find matching high-performance assemblies. Pair with the 2.4mm male 2-hole flange mount RF connector – Model 2.4-JFD27 for seamless integration and precise impedance matching in compact test setups.
