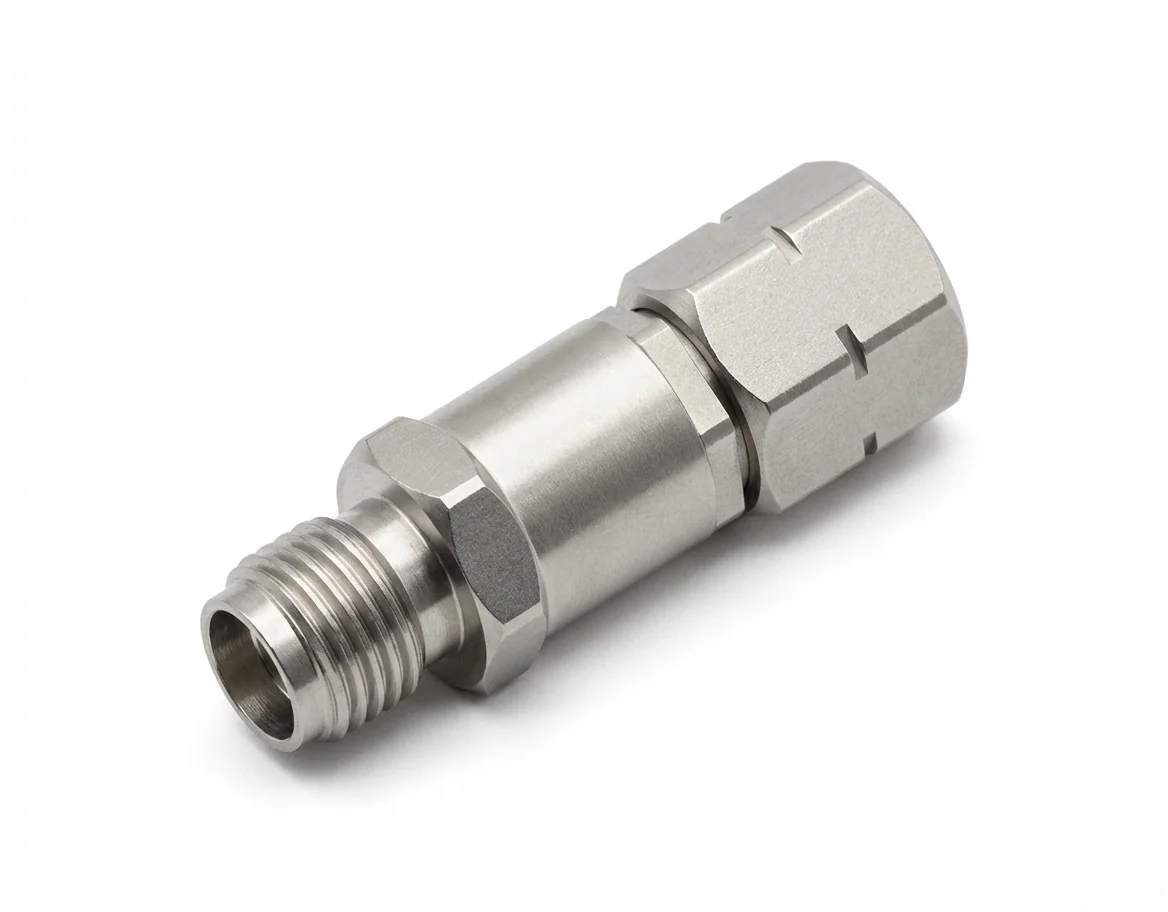

2.92mm Female to 2.4mm Male RF Adapter

The 2.92mm Female to 2.4mm Male RF Adapter – 2.92/2.4-KJ1, also referred to as 2.4mm Male to 2.92mm Female RF Adapter – 2.4/2.92-JK1, is a high-precision coaxial adapter engineered to provide a seamless interface between 2.92mm female and 2.4mm male connectors. Designed for low-loss signal transition, this straight adapter enables reliable interconnection across next-generation RF systems and test equipment.

Rated up to 40 GHz and supporting a stable 50-ohm impedance, the 2.92mm Female to 2.4mm Male RF Adapter is ideal for use in advanced applications such as component performance evaluation, 5G mmWave module prototyping, and automated RF test setups. The adapter supports critical frequency bands used in defense, telecom, and aerospace applications.

This 2.92mm to 2.4mm coaxial adapter delivers excellent electrical performance with VSWR ≤1.12 and insertion loss ≤0.25 dB across the operational range. The 2.92mm Female to 2.4mm Male RF Adapter ensures accurate signal routing, consistent impedance, and minimal reflection—ideal for sensitive RF measurements and interconnects.

Manufactured from passivated stainless steel with gold-plated beryllium copper contacts, this 2.92mm between-series adapter offers high durability and corrosion resistance. It is built to withstand repeated matings and environmental stress, with an operating temperature range of -55°C to +165°C.

RoHS and REACH compliant, the 2.92mm Female to 2.4mm Male RF Adapter offers high-frequency performance, long-term mechanical reliability, and cross-platform compatibility. Custom versions are available upon request to accommodate specific connector formats, electrical tolerances, or space-constrained applications.
