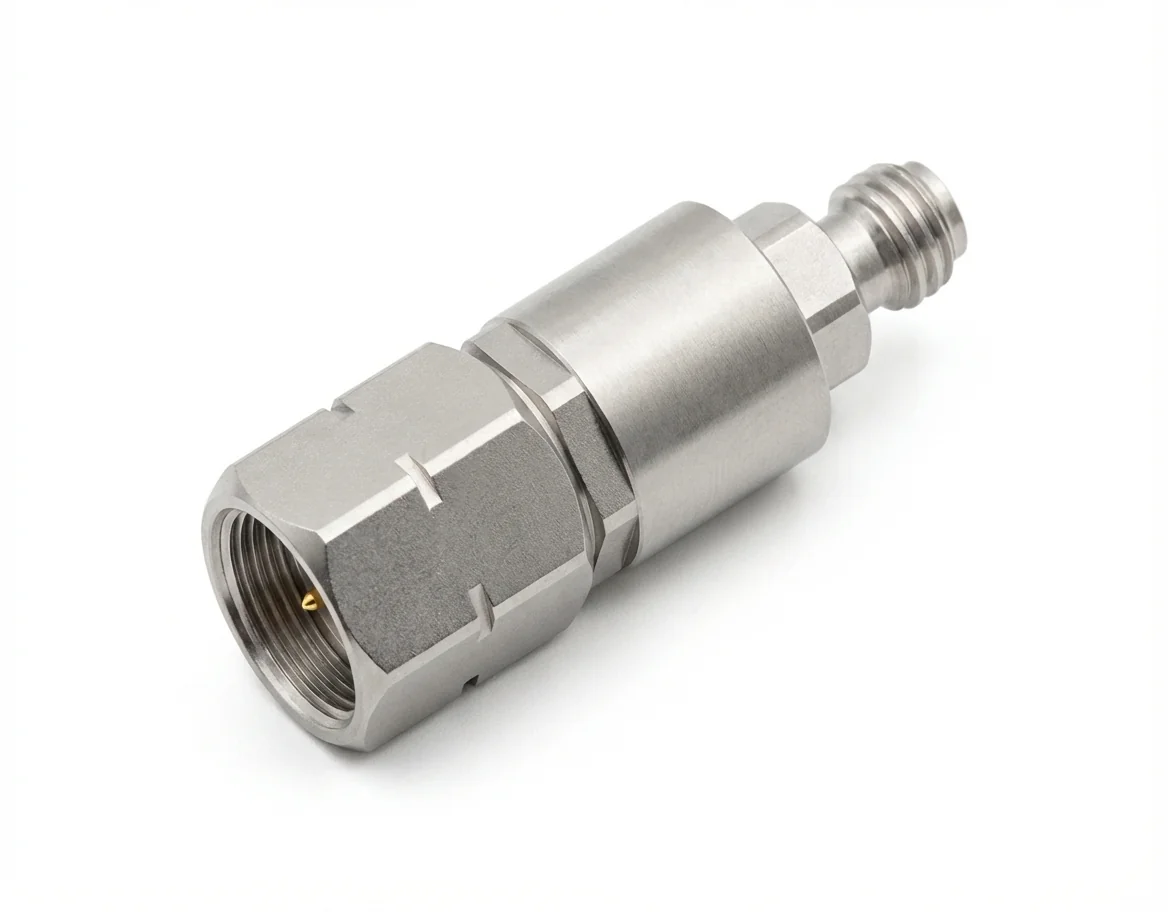

2.4mm Male to 1.0mm Female RF Adapter

The 2.4mm Male to 1.0mm Female RF Adapter – 2.4/1.0-JK1, also referred to as 1.0mm Female to 2.4mm Male RF Adapter – 1.0/2.4-KJ1, is an ultra-high-frequency coaxial adapter designed for seamless interconnection between 2.4mm male and 1.0mm female interfaces. This straight-body adapter provides excellent signal integrity and mechanical stability in dense, high-performance RF environments.

With a frequency range reaching up to 110 GHz and a controlled 50 Ω impedance, the 2.4mm Male to 1.0mm Female RF Adapter is optimized for mmWave testing, RF validation, and precision measurements in sectors such as 5G module interfaces and LEO payload RF interconnects, where compact layout and high-frequency signal preservation are critical.

Engineered for performance, this 2.4mm straight coaxial adapter offers insertion loss ≤0.7 dB and VSWR ≤1.2 at 50 GHz, ensuring excellent return loss and minimal signal distortion. It is ideal for ultra-sensitive test and measurement setups including component performance evaluation where bandwidth integrity and repeatability matter.

Constructed with a durable passivated stainless steel housing and gold-plated beryllium copper contacts, the 2.4mm Male to 1.0mm Female RF Adapter ensures long-term mechanical performance and low interconnect resistance. It operates reliably in harsh test environments across a temperature range of -55°C to +165°C.

Compliant with RoHS and REACH directives, Mechanc’s 2.4mm Male to 1.0mm Female RF Adapter supports responsible engineering while meeting the needs of telecom, aerospace, defense, and precision lab applications. Custom interface configurations are available on request for specific system integration requirements.
