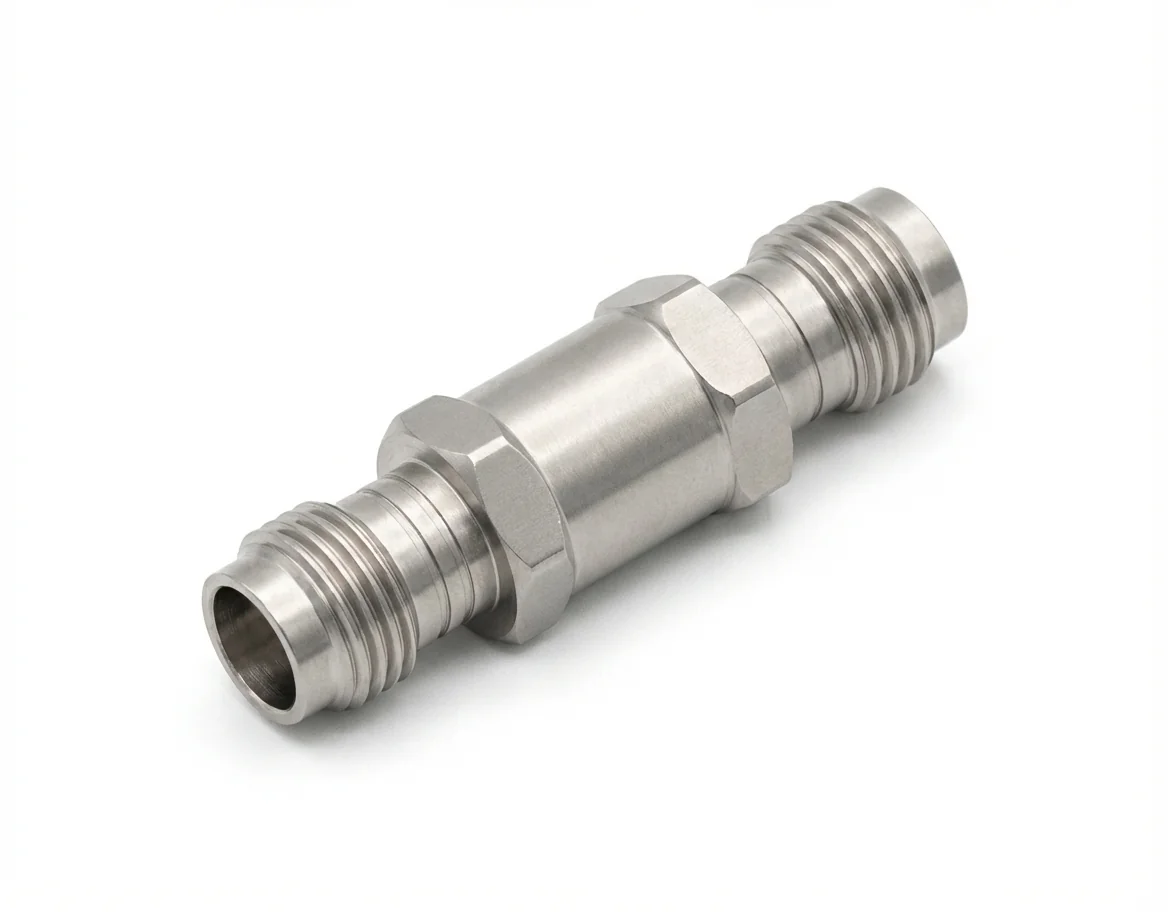

1.85mm Female to 2.4mm Female RF Adapter

The 1.85mm Female to 2.4mm Female RF Adapter 1.85/2.4-KK1 – also featured as the 2.4mm Female to 1.85mm Female RF Adapter 1.85/2.4-KK1 – seamless connectivity between 1.85mm and 2.4mm female connectors, providing an optimal solution for applications that require precision, durability, and ultra-low signal distortion. This high-frequency adapter enables direct mating between two popular coaxial connector types, ensuring dependable electrical performance in critical RF and microwave systems.

Engineered for frequencies up to 50 GHz and a characteristic impedance of 50 Ω, the 1.85mm to 2.4mm female-to-female adapter is particularly well-suited for modern RF infrastructures such as satellite ground terminal networks, microwave backhaul systems, and end-of-line quality verification environments. With an insertion loss of less than 0.45 dB at 50 GHz and a VSWR of less than 1.25, this between-series adapter guarantees minimal signal degradation and excellent return loss characteristics, helping engineers maintain signal clarity across the entire bandwidth.

Constructed with ruggedized materials, this adapter uses gold-plated beryllium copper for the center conductor and passivated stainless steel for the outer shell to ensure outstanding resistance to wear, corrosion, and temperature fluctuations. Designed to withstand extreme operating environments, the 1.85mm Female to 2.4mm Female RF Adapter supports temperatures from -55°C to +165°C, making it suitable for both lab-grade instrumentation and mission-critical field deployments.

Fully compliant with REACH and RoHS directives, the 1.85mm Female to 2.4mm Female RF Adapter not only meets industry performance standards but also aligns with today’s stringent environmental and safety regulations. Each unit is subjected to rigorous testing to ensure mechanical stability and signal integrity.

Mechanc offers customization services for the 1.85/2.4-KK1 straight coaxial adapter and other high-frequency solutions, enabling tailored specifications for unique application requirements. Whether used in aerospace diagnostics, advanced telecom systems, or production testing lines, this adapter ensures a robust and reliable connection with exceptional electrical performance.
