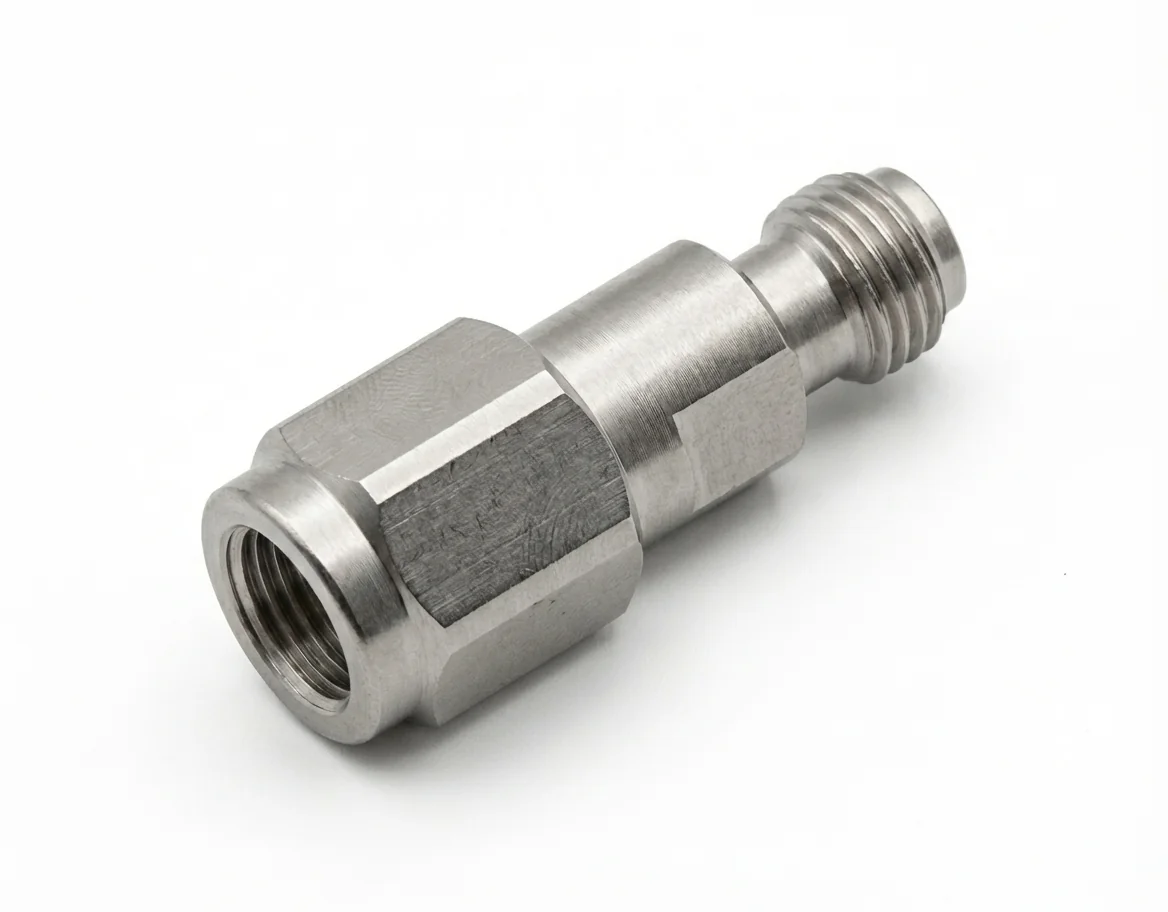

The Male to 1.0mm Female RF Adapter 1.0-JK1 — also referred to as 1.0mm Female to 1.0mm Male RF Adapter 1.0-KJ1 — is engineered with exceptional precision for high-frequency RF applications.
This 1.0mm male to 1.0mm female RF adapter is designed with a straight attachment mechanism that enables seamless connectivity between 1.0mm male and female connectors. This 1.0mm male to 1.0mm female adapter is an essential tool for applications that require a secure and straightforward connection. Ensuring robust mechanical stability and consistent electrical performance, this male to female 1.0mm adapter is capable of supporting a frequency range up to 110 GHz, paired with an inherent 50 Ω impedance, making it suitable for a variety of sophisticated RF applications, such as high-frequency 5G module interconnects and ADAS testing systems for automotive radar.
The 1.0mm male to 1.0mm female RF adapter 1.0-JK1 stands out with its remarkable insertion loss feature, achieving less than 0.5 dB at 110 GHz and a VSWR of less than 1.3 at 110 GHz.
Manufactured to the highest standards, the “1.0-JK1” 1.0mm male to female coaxial adapter is composed of superior materials and plating to guarantee longevity and endurance against environmental stresses. This coaxial adapter is built to perform reliably within a temperature range from +15°C to +35°C, thus ensuring consistent functionality under various operational conditions.
Compliant with the latest environmental standards, the “1.0-JK1” male to female straight adapter reflects Mechanc’s commitment to environmental stewardship and user safety.
Recognizing the diverse needs of RF technology applications, Mechanc offers the “1.0-JK1” 1.0mm male to 1.0mm female RF adapter in custom configurations to meet the specific requirements of your projects. Selecting Mechanc means choosing 1.0mm in-series adapters that surpass industry benchmarks, with customized solutions that are precisely engineered to your specifications.
